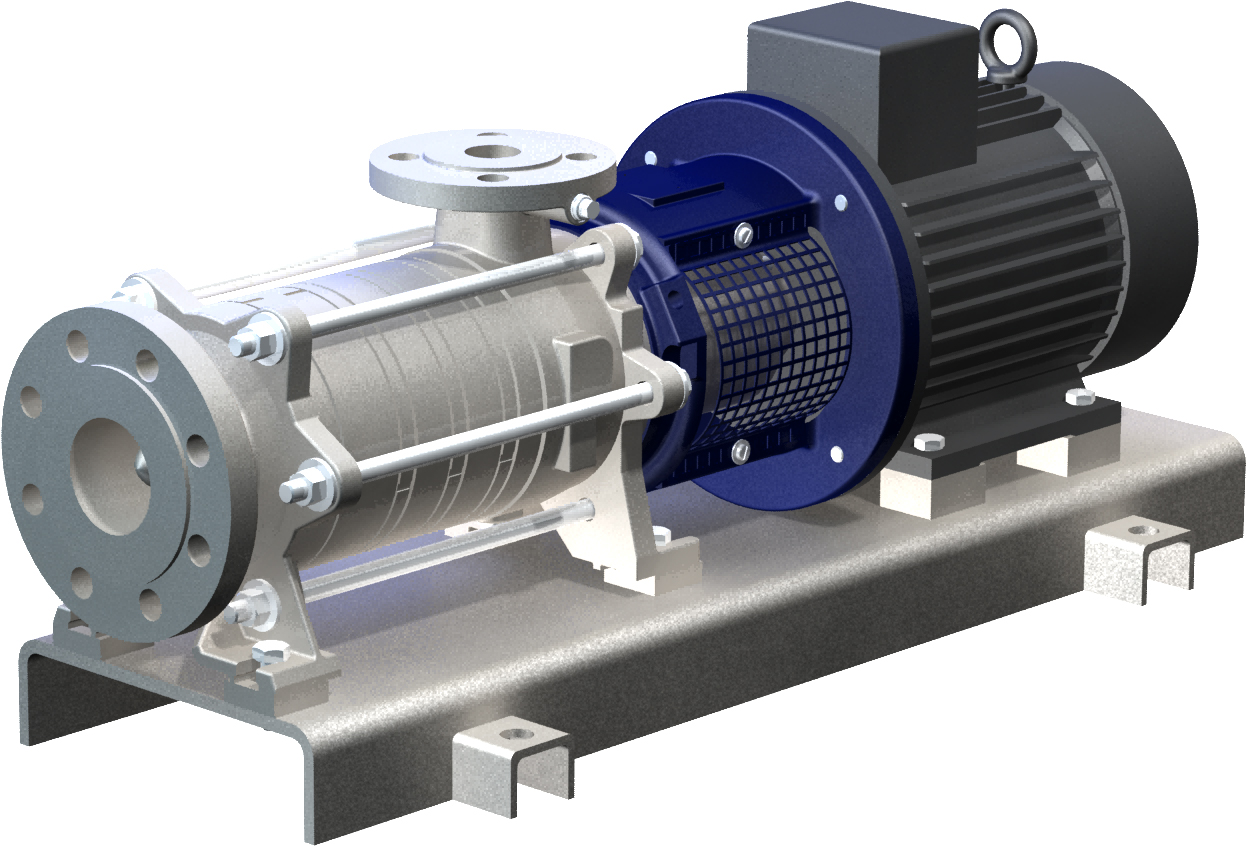

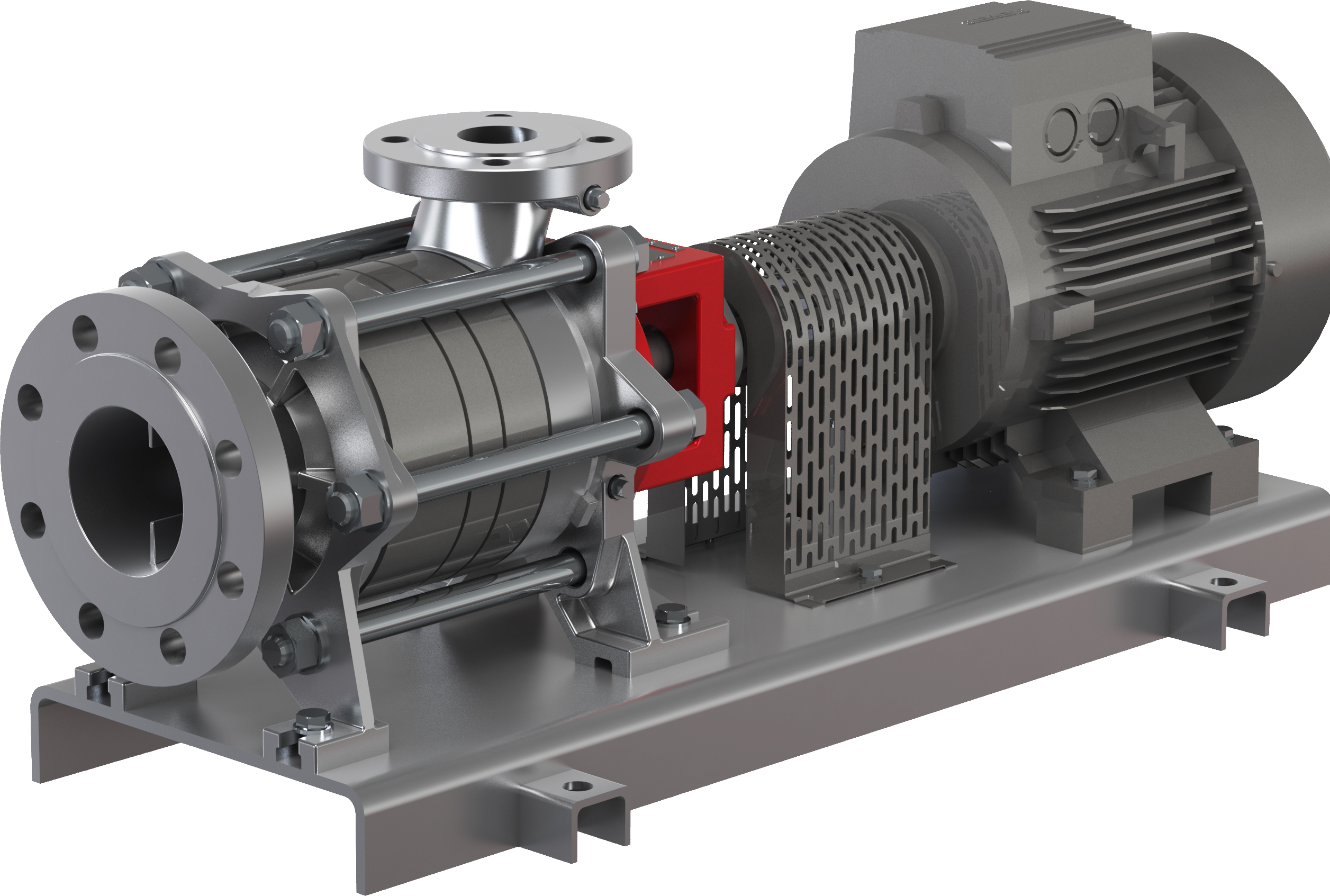

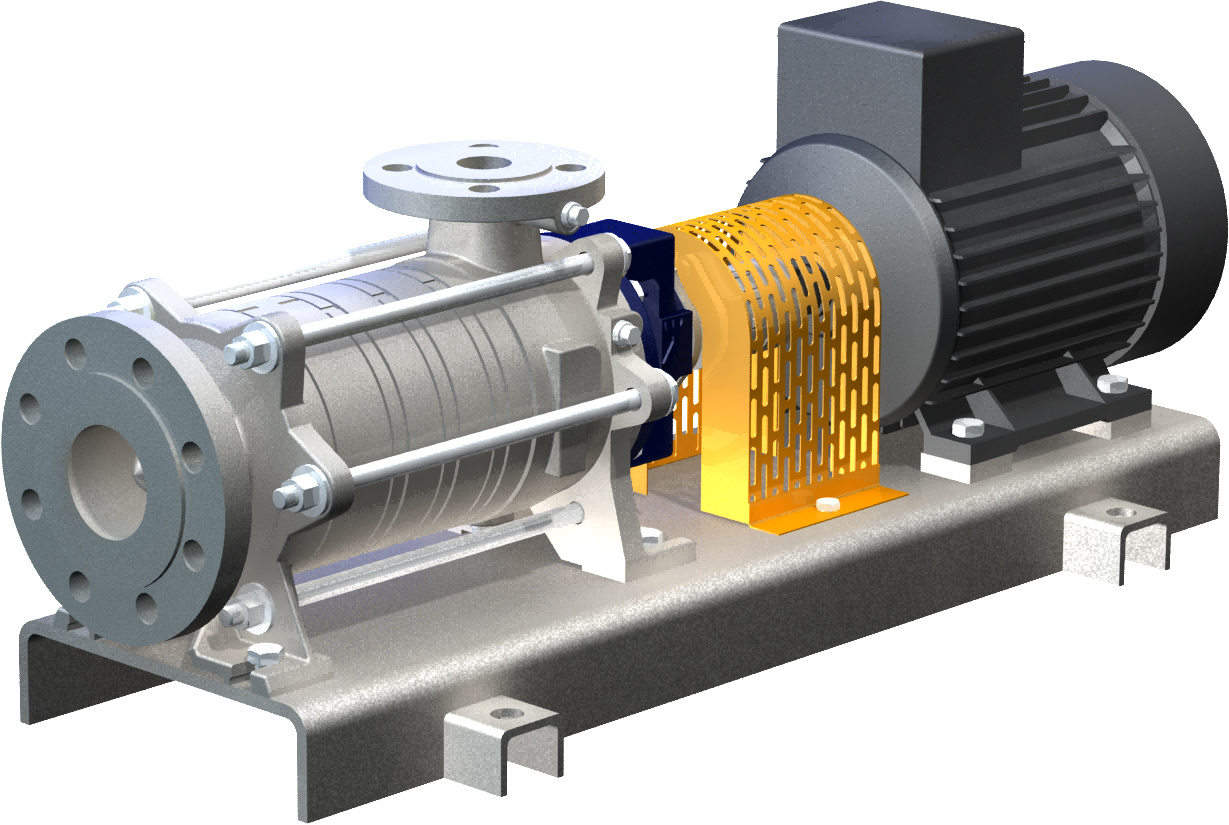

Side Channel Multistage Pump
Mechanical seal / Magnetic Drive
With NPSH suction stage
Horizontal multistage centrifugal pump according to the side channel principal with
NPSH suction stage. Pump is equipped with
NPSH impeller which help to pump liquidnear boiling point. Pump is available with packing seal, mechanical seal and magnetic drive.
Feature
Roller bearing is lifetime lubricated
Sleeve bearing is hydrodynamically lubricated
Balanced and unbalanced mechanical seal
Double acting mechanical seal
Cooled and non-cooled mechanical seal
Sealless Magnetic Drive
Pump available with temperature monitoring
Specification
Delivery rate up to 40 m3/h
Pressure up to 400 m
Temperature
Stuffing box 105 Degree C
Mechanical seal -uncooled 140 Degree C
Mechanical seal-cooled 180 Degree C
Magnetic Drive Version 350 Degree C
Application
Delivery of hot water in boiler system
Delivery of salt water - Marine Industry
Condensate Recovery Process
Delivery of liquidfied gas and hydrocarbons
Palm oil extracting
