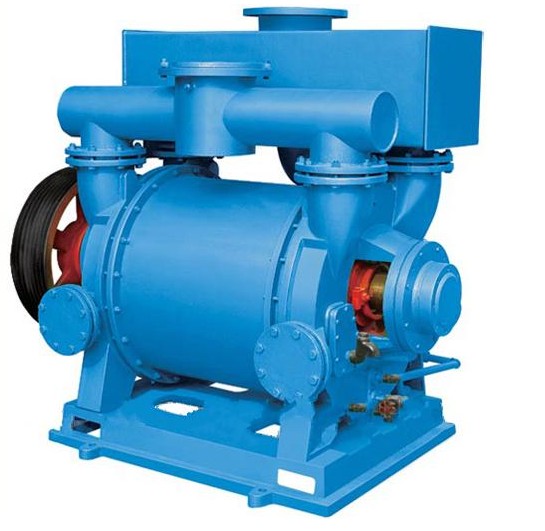

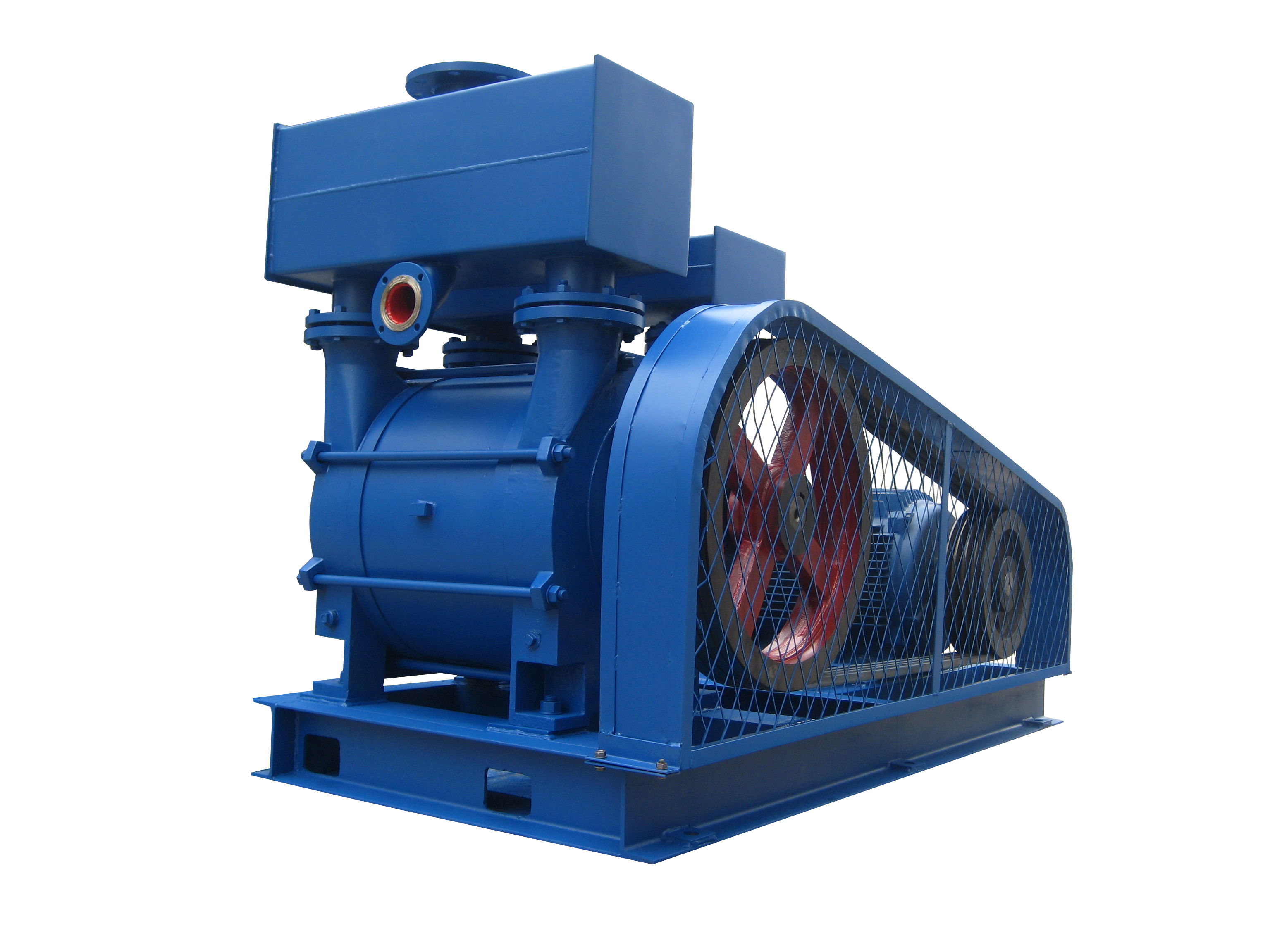

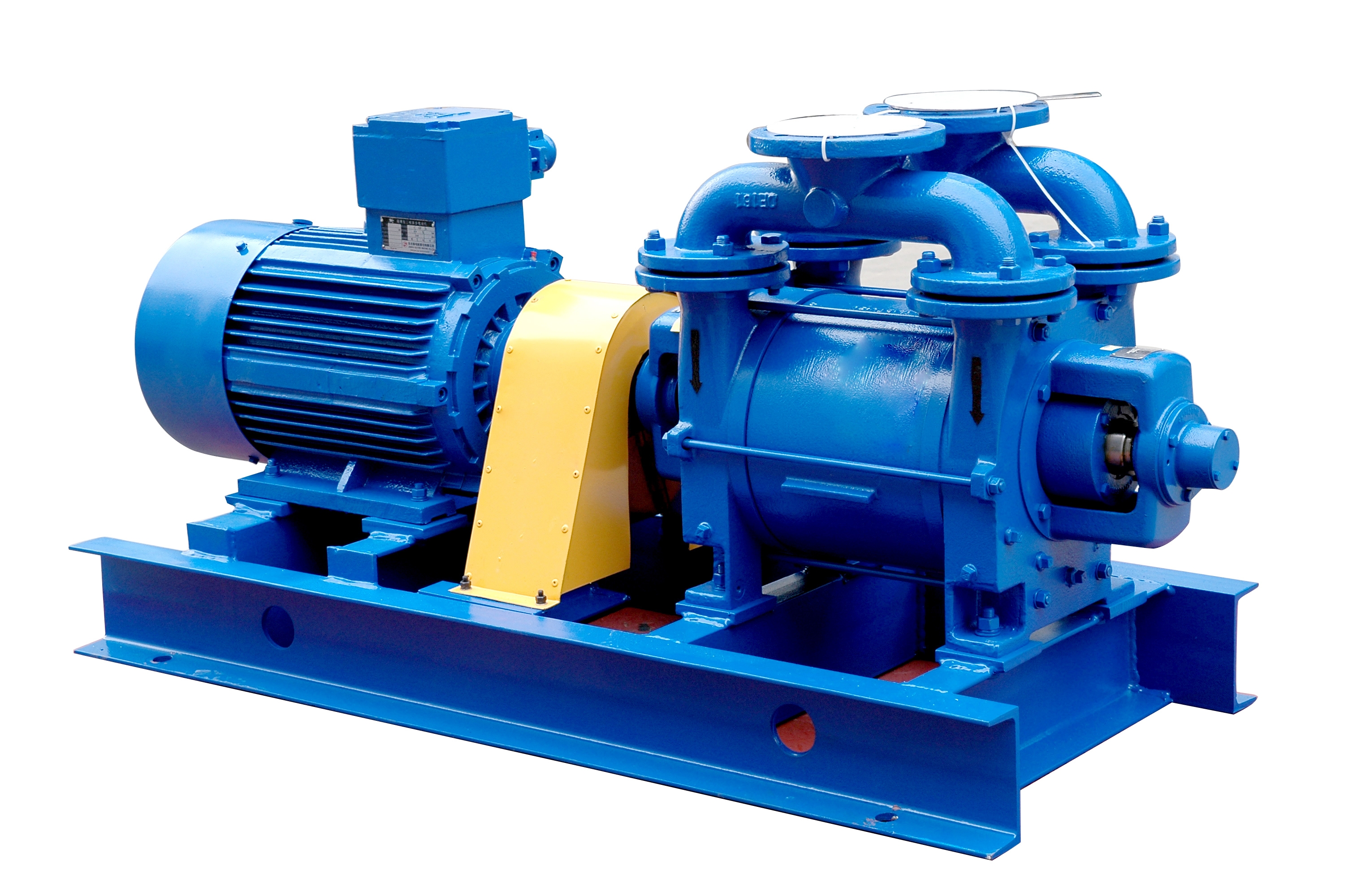

Liquid Ring Vacuum Pump
2BE1/2BE3 Large Size Pump
2BE1 large size liquid ring vacuum pump is able to create suction pressure up to 33 mbar
The pump has simple structure and easy for maintenance. Pump is designed with cavitation protection which gaurantee safe running and has suction capacity up to 11,500 m3/h.
2BE3 is able to create vacuum up to 160 mbar and suction capacity up to 62,000 m3/h.
Features
Single stage and single function simple structure suitable hazadous area, according to ATEX Convenient for maintenance,
Reliable running
High efficiency and energy saving
Able to handle large amount of water on the inlet
Able to handle load fluctuation
Suitable for use with corrosive gases
Specification
Suction capacity up to 62,000 m3/h
Suction Pressure up to 33 mbar
Power 1250 kW
