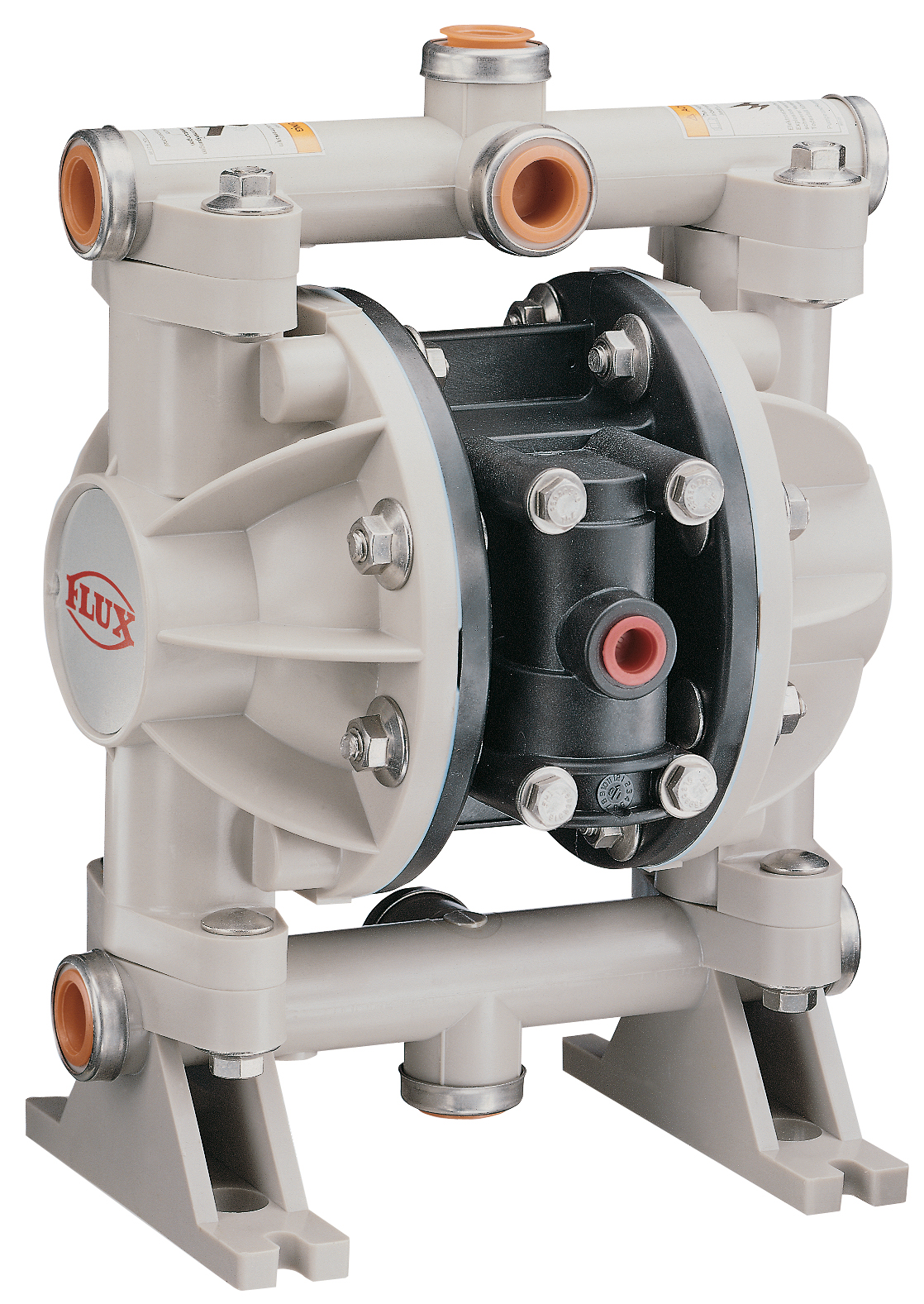

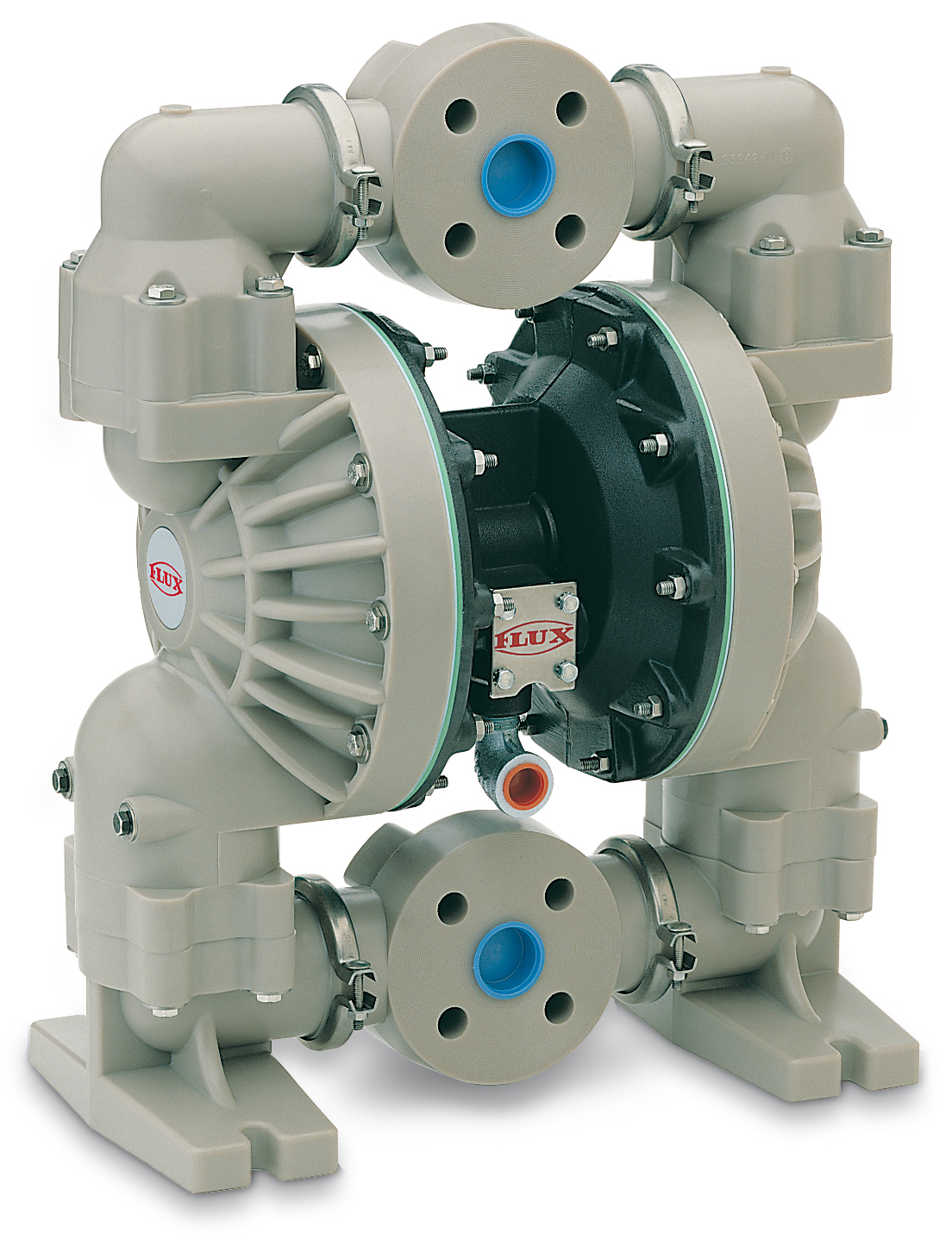

Air Operated Diaphragm Pump
FDM PP/PVDF
Flux Air Operated Diaphragm Pump is a positive displacement pump designed for the transfer of high viscosity liquid and liquid with solid in suspension, high abbrasive liquid and flammable liquids.
Polypropylene (PP)
Suitable for corosive liquids, acids and alkalis, Formic Acid, ammonia, boracic acid, chromic acid, fertilizer, acetic acid, hydrochromic acid, fruit acid, caustic potash, copper chloride, lactic acid, caustic soda, phosphoric acid, Hydrochloric acid, sulphuric acid
Polyvylidene Fluoride (PVDF)
Suitable for chemically aggressive liquids, hydrogen bromide, chromic acid, chloric acid, hydrofluoric acid, sodium hypochlorite, azolic acid, sulfuric acid,
Features
Pressure up to 8 bar (20 bar on 3:1 ratio)
Self-Priming, from a dry start
Variable delivery rate
No need bypass control
No leakage
Fully submersible
Suitable for dry run operation
Specification
Delivery rate up to 1000 l/min
Pressure up to 8 bar
Suction head up to 7.6 m
Max. solid size up to 9.5 mm
