Flux High Viscosity Liquid Pump
F550 S / F550GS - Eccentric Worm Drive
Flux eccentric worm-drive pumps are suitable forpumping thin to high viscosity fluids. The displacement pump work with low turbulence at a constant pressure and provide for a gentle and pulsation-free operation. Series F550 S / F550 GS are for use, especially in the industrial market.
Advantages
- for mobile and staionery use
- few components, easy to disassemble
- able to pump high viscosity media
- robust, portable and powerful
- for fluids up to 100,000 mPas
Delivery rate 30 / 50 l/min
Delivery head 8 bar
Seal Type mechanical seal
Tube material SS316Ti
Stator Material
NBR white suitable for oil, greases, and food products
NBR black suitable for oil and greases
FKM Excellent chemical resistance
PTFE Excellent chemical resistance
particularly suitable
for food products
for phramaceutical products
for cosmetic products

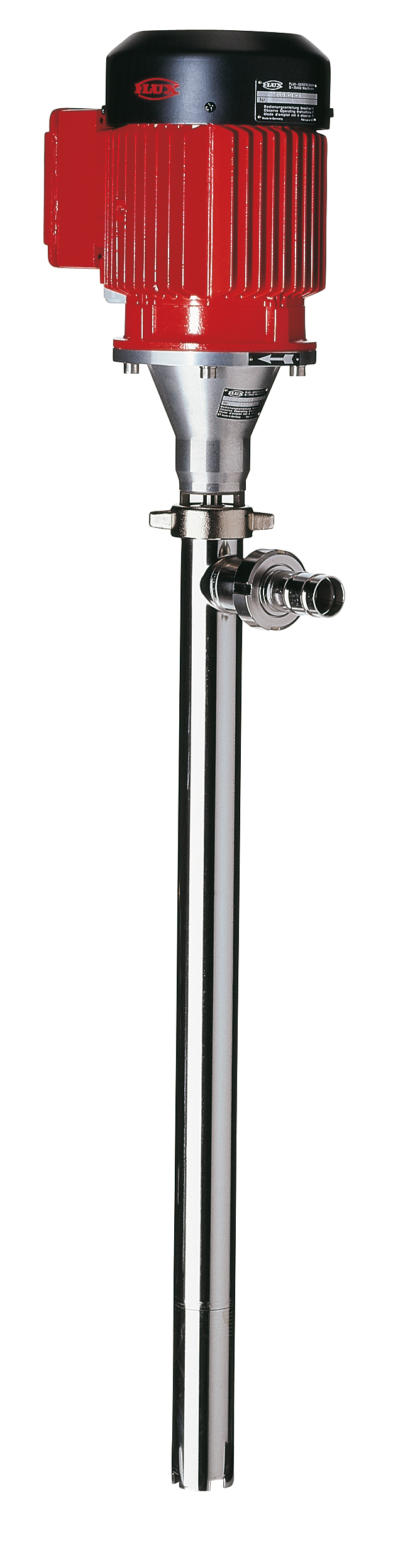

Motor 3 phase, 400V, 50Hz, 700 rpm, 0.75/1.1 kw
3 phase, 400V, 50Hz, 930 rpm, 0.75/1.1 kw

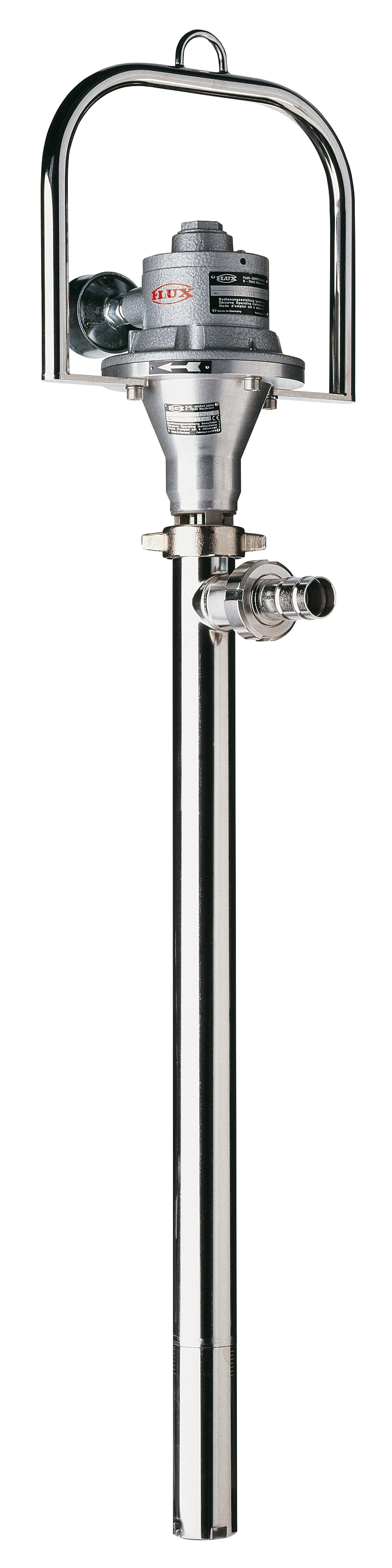

Compressed Air Motor, 1000 rpm, 0.5 kw
Compressed Air Motor, 1000 rpm, 1.1 kw
Compressed Air Motor, 1000 rpm, 1.8 kw
