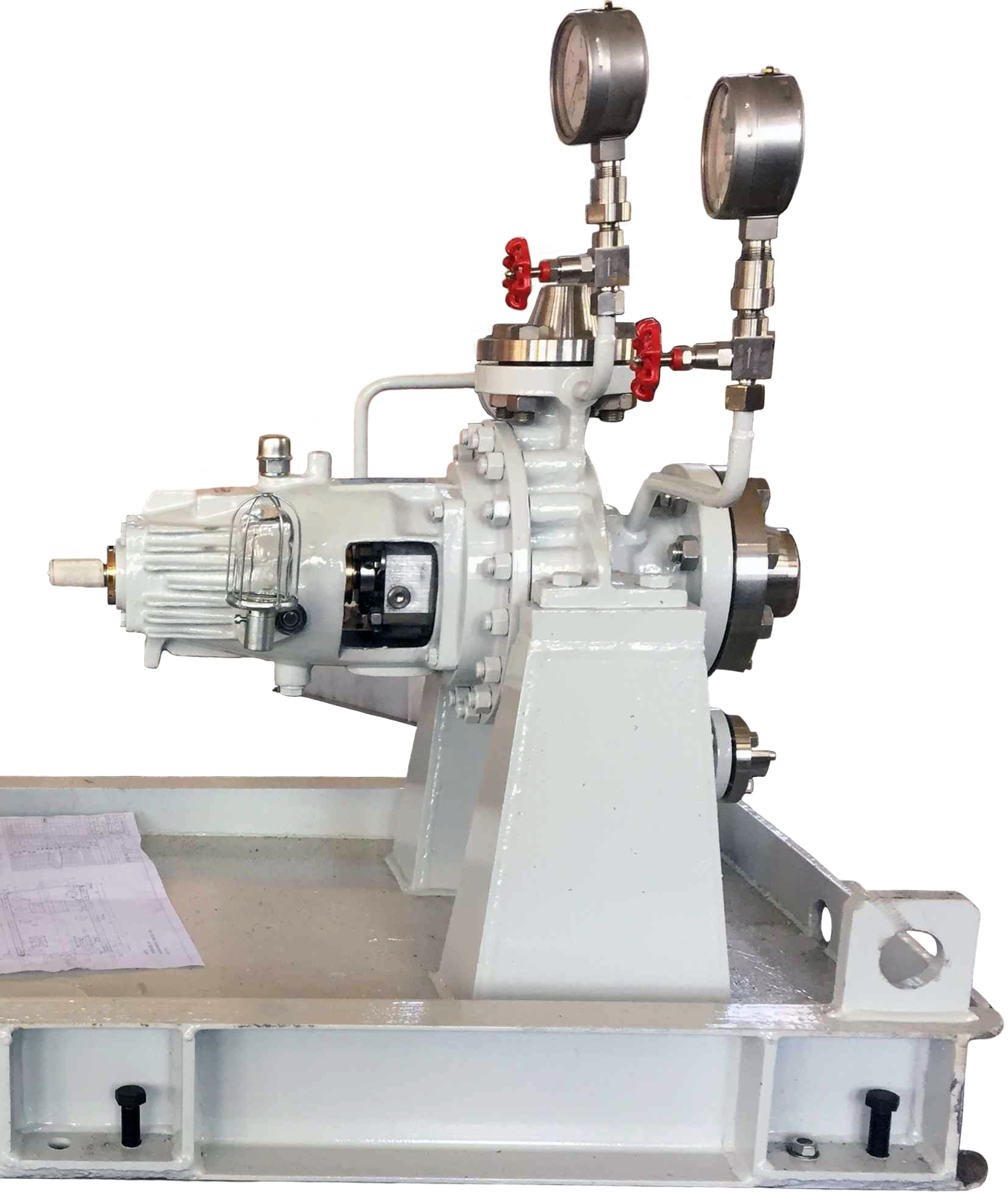

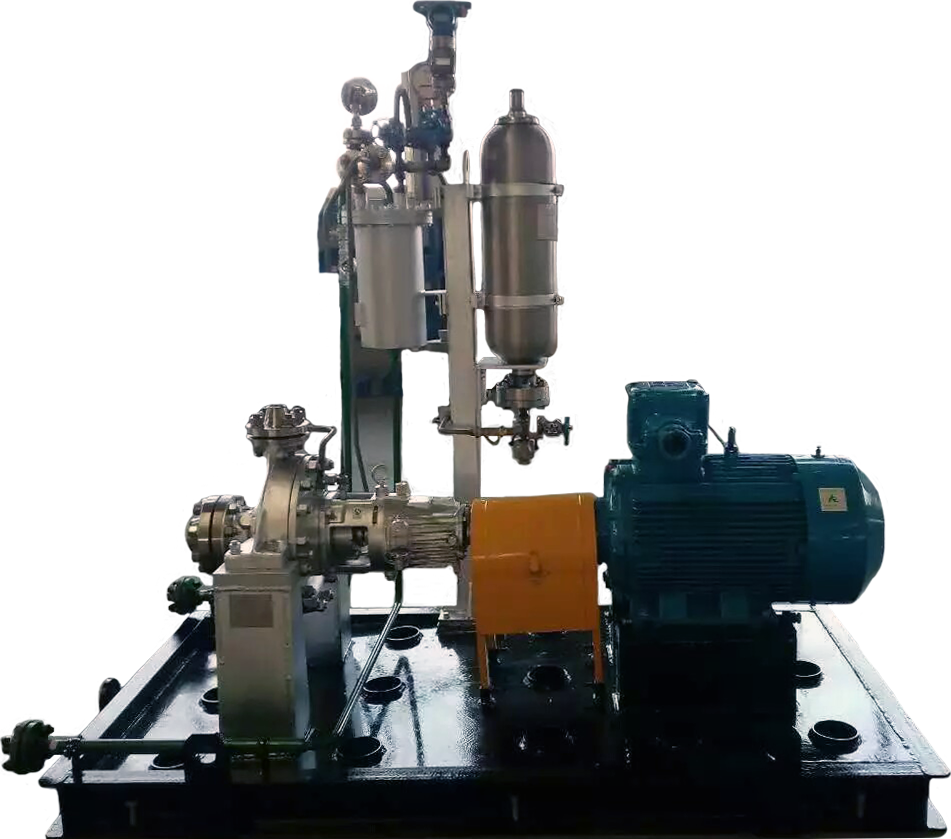

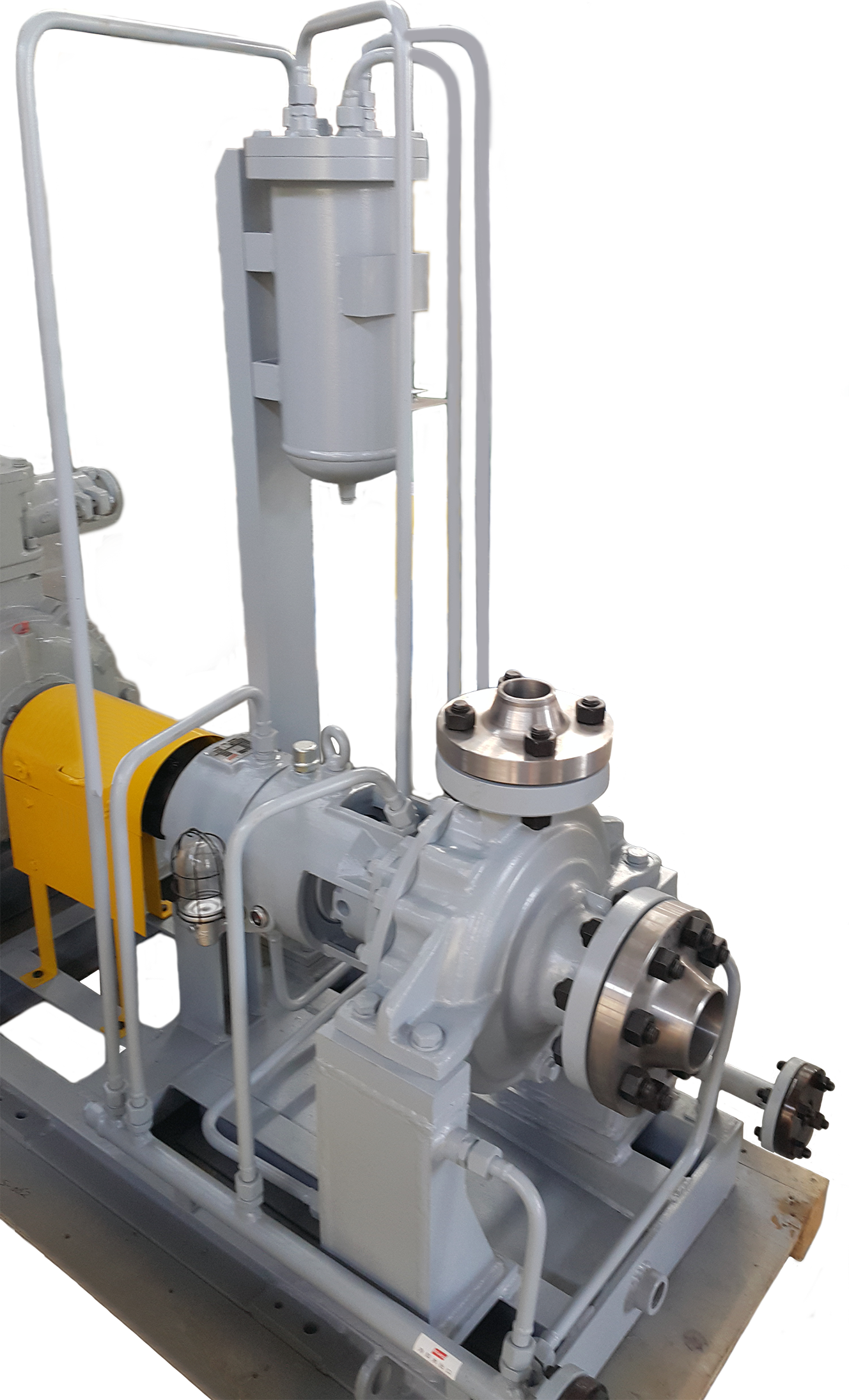

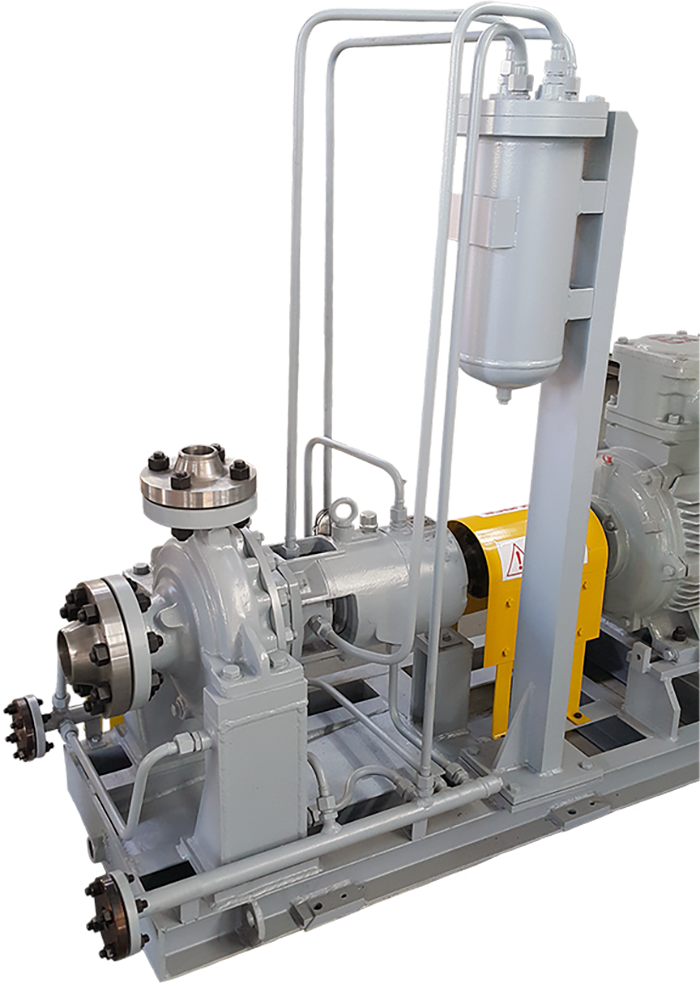

Petrochemical Grade Pump
End Suction Centrifugal Pump
Petrochemical grade end suction
centrifugal pump designed according to ISO13709 / API 610 (OH1) rear pull-out. Shaft sealing is available with cartridge mechanical seal and API flushing plan according to ISO21049 /API682.
Pump is available with version foot mounting and center line mounting version, and with closed and opened impeller.
Operating range
Capacity up to 2600 m3/h
Pressure up to 250 m
Temperature up to 300 oC
