Magnetically coupled centrifugal pump
Self-Priming

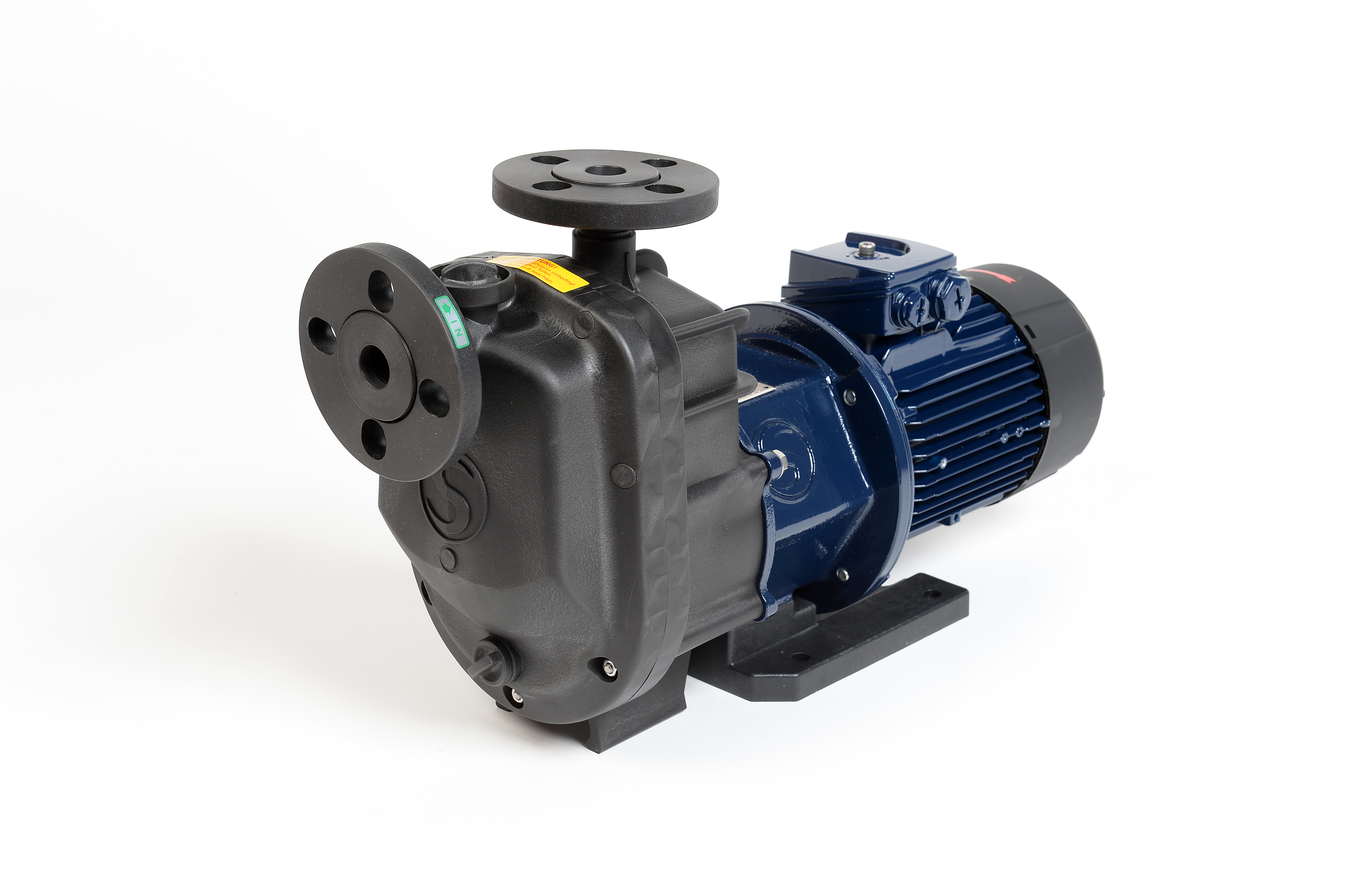

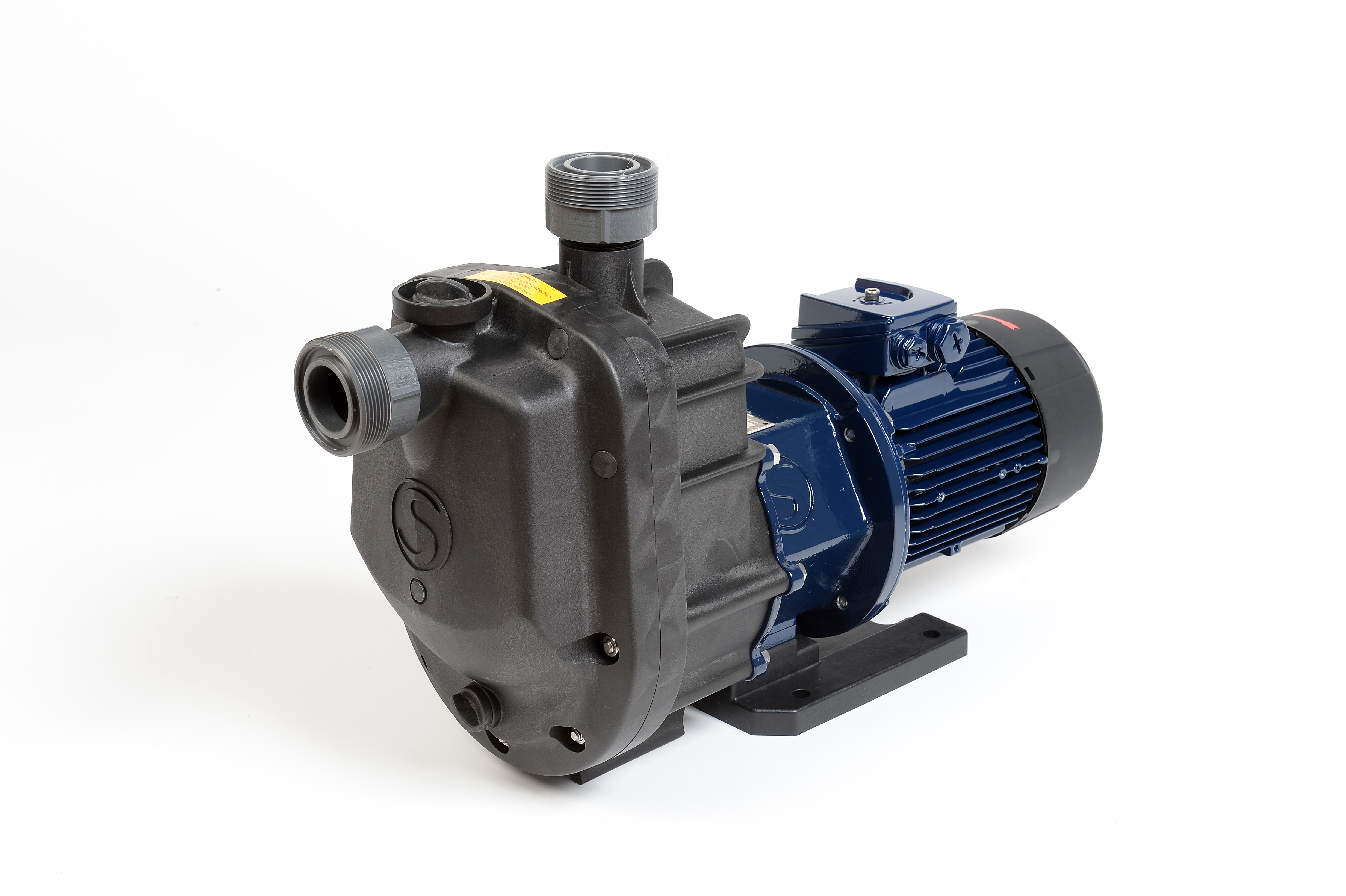

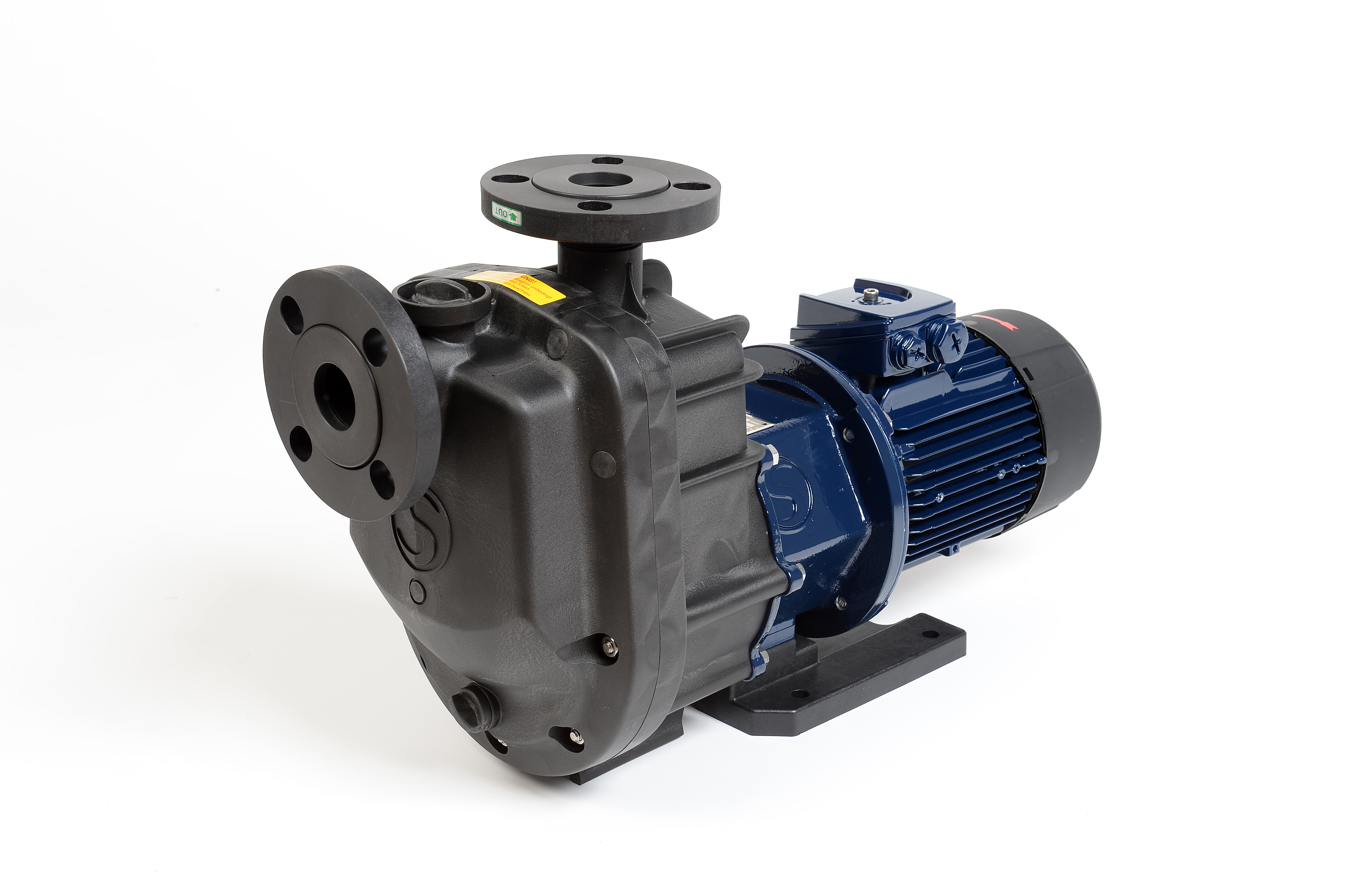

Flux/Sondermann magnetically coupled pumps self-priming version is able to pump liquid from tank at below the pump. The impeller and priming chamber is designed to ensure air is evacuated and a two-phase mixture, fluid, and air, isdelivered without causing any damage. There is always enough fluid in the bottom chamber to supply both the impeller and the bearing with fluid.
Advantages
Excellent priming capacity of 5 m in less than 2 minutes
capacity range of up to 27 m and 470 l/min
suitable to run dry
Material of pump construction
Pump Housing PP / ETFE
Impeller PP / ETFE
O Ring EPDM, FKM, FEP, FFKM
Bearing Silicon carbide, carbon, Alumina, PTFE
Shaft Alumina ceramic, silicon carbide
